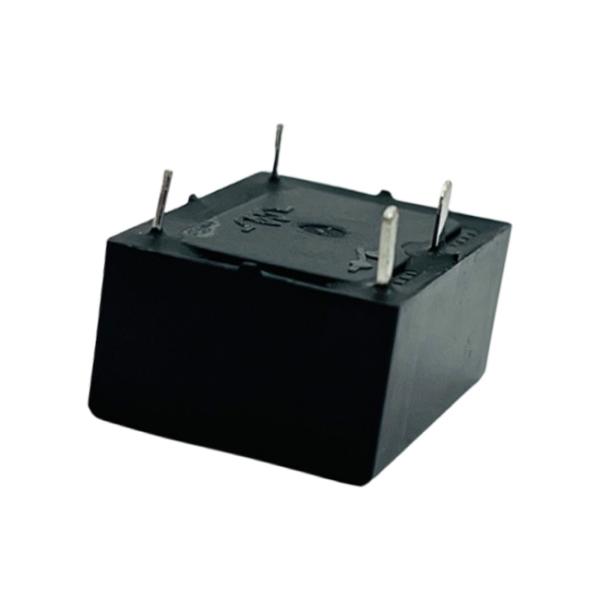

16A 12 Volt SPST Miniature Power Relay Low Power PCB Mount For Sound System
12V SPST Relay Description:
RE series power relay, height is shorter than another series relay, especially available to which housing of product is flat shape. Low coil power with 200mW, high sensitivity, PCB mounting,10A or 16A rated current for options, dielectric withstand voltage 2KV, CQC/TUV/UL is approved, safe and reliable, widely used for smart home appliances, such smart dishwasher, smart socket...
12V SPST Relay Features:
1. short and light.
2. Ag alloy contact material.
3. 0.2W coil power.
4. 2000VAC for dielectric withstand voltage between coil and contact.
5. cULus: E345228/TUV: R50250866/CQC: CQC12002086474 approved.
12V SPST Relay Specification:
| General data: |
| Rated withstand impulse voltage | coil contact | 2kV AC/1min |
| between contact | 1kV AC/1min |
| Surge voltage | 5kV AC(1.2/50μs) |
| Insulation resistance | 1000MΩ(500VDC) |
| Vibration | Fault 10-55Hz(amplitude 1.5mm) |
| Endurance 10-55Hz(amplitude 1.5mm) |
| Shock | Fault 98m/S2 Endurance 980m/S2 |
| Operating temperature | -40 ~ 105℃(no condensation) |
| Operating humidity | 20 ~ 85％ |
| Dimension LxWxH(mm) | 23.0x16.1x10.2 |
| Enclosure type | Flux-resistance, sealed |
| Mounting | PCB |
| Weight(g) | 9 |
| Certifications | cULus:E345228/TUV:R50250866/CQC:CQC12002086474 |
12V SPST Relay Introduce:
A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
